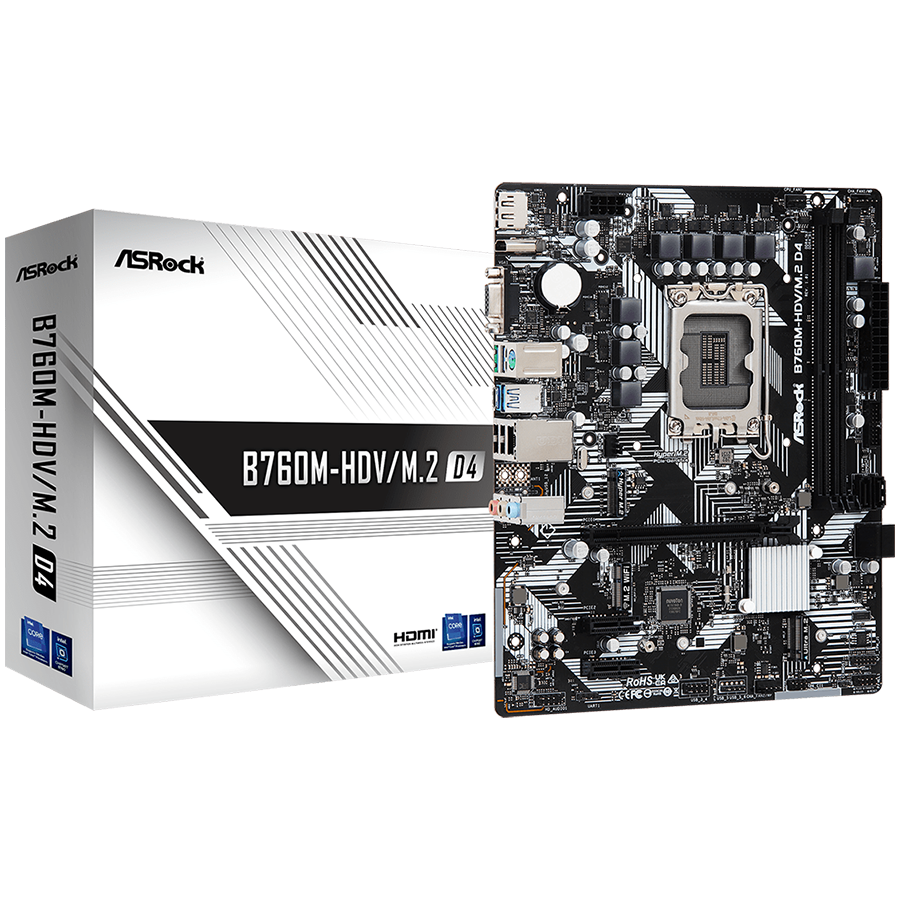

ASROCK MB Desktop B760M-HDV/M.2 D4 (S1700, 2x DDR4, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x Hyper M.2 PCIe Gen4x4, 1x M.2 Ultra Gen3x4, 4x SATA3, 1x USB-C, 5x USB 3.2, 5x USB 2.0, 1xRJ-45 1Gbit, 1x VGA, 1x HDMI, 1x DP, mATX

Jamstvo : 36 mjeseci , Chipset: Intel B760
Supports Central Processor Unit: Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors
CPU podnožje: Socket 1700
Architecture Features: Intel Turbo Boost Technology 3.0
Intel Hybrid Technology
Intel Thermal Velocity Boost
Intel Adaptive Boost Technology
CPU Maximum Quantity Supports: 1
Vrsta memorije: DDR4 SDRAM
Memory Form Factor: DIMM 288-pin
Memory Speed: 5333MHz(PC4-42600)
Maximum Installable System Memory Storage Capacity: 64 GB
Memory Slot Total Quantity: 2
Provides Error Checking Method: non-ECC
Memory Features: Unbuffered
XMP 2.0
Support: Wi-Fi Controller:
1 x M.2 (Key E)
Integrated: Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Video Controller Integrated: yes
Video Chipset: Intel Iris Xe Graphics
Audio Integrated: yes
Device Location: Integrated
Audio Chipset: Realtek ALC887/ALC897
Audio Output Mode: 7.1 Channel Surround
Compliant Audio Standards: High Definition Audio
LAN Integrated: yes
LAN Chipset: Realtek RTL8111H
Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
USB 3.2 Gen 1: 1 (USB 3.2 (type C)); 3 (USB 3.2 (type A))
VGA: 1 (15-pin D-sub)
DisplayPort: 1
HDMI: 1 (HDMI (Type A))
LAN: 1 (RJ-45)
Audio Interface: 3 (3.5-mm minijack)
USB 2.0: 2 (USB 2.0 (type A))
Antenna: 2
PS/2: 1
BIOS Type: AMI
BIOS Features: UEFI
128Mb AMI UEFI Legal BIOS with GUI Support
ASRockRack Instant Flash
Supported Operating System: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Cable Included: 2 x SATA Data Cables
Included Accessories: I/O Shield
Quick Start Guide
Screws
Form Factor: Micro ATX
Height (mm): 201 mm
Width (mm): 244 mm
Warranty Products Returnable: Yes
Warranty Term (month): 36 month(s)
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 0.767 kg
Pack Weight Netto (kg): 0.3 kg
Pieces in pack: 1
Box Weight Brutto (kg): 0.4 kg
Retail Packaging Net Weight Carton: 0.3 kg
Retail Packaging Net Weight Plastic: 0.3 kg
Packs in Box: 1
Package Type: Retail
EAN Code: 4710483942020
